APT-P Tilt System


Safety Precaution - Illustration to Staff

NOTE: All APT vehicles TILT - Gaps between vehicles and their bogies are large to allow for tilt movement.

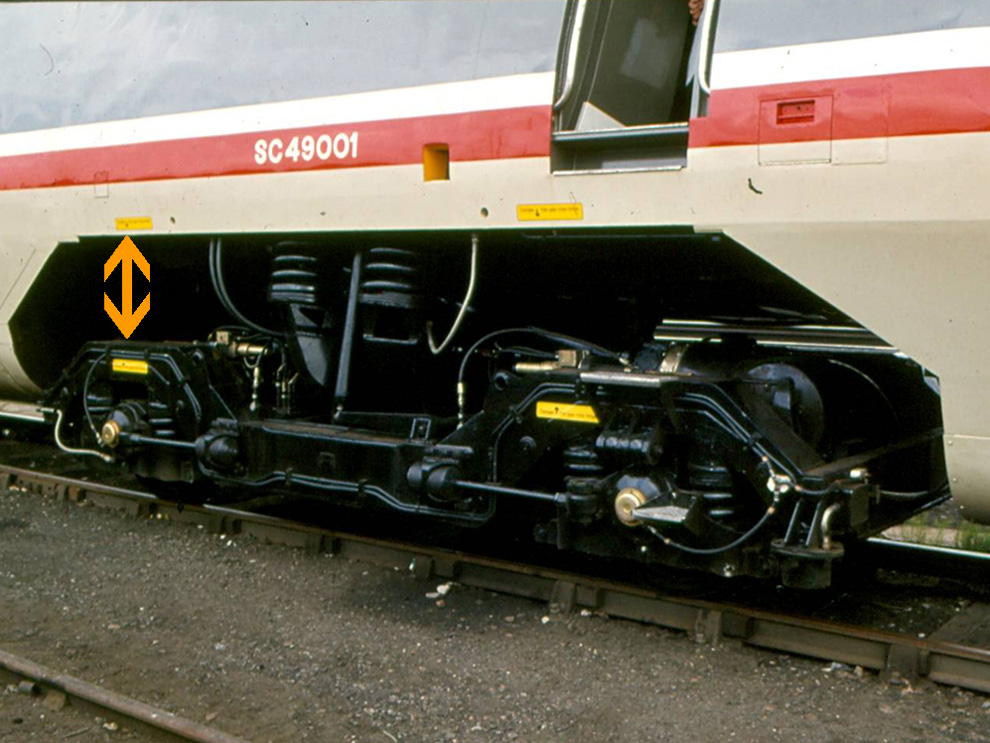

This Gap

THIS GAP THIS GAP CAN CHANGE TO THAT
if a fault develops

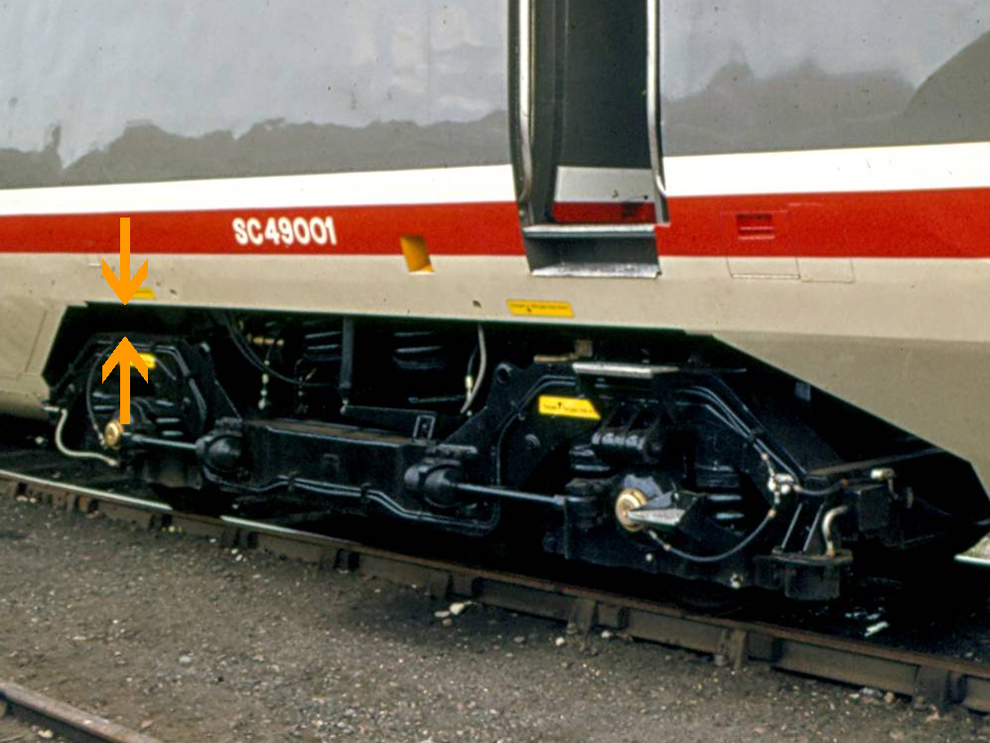

THAT GAP

That Gap
If you have to work on a bogie use a safety chock.
Otherwise KEEP OUT OF THE GAP.

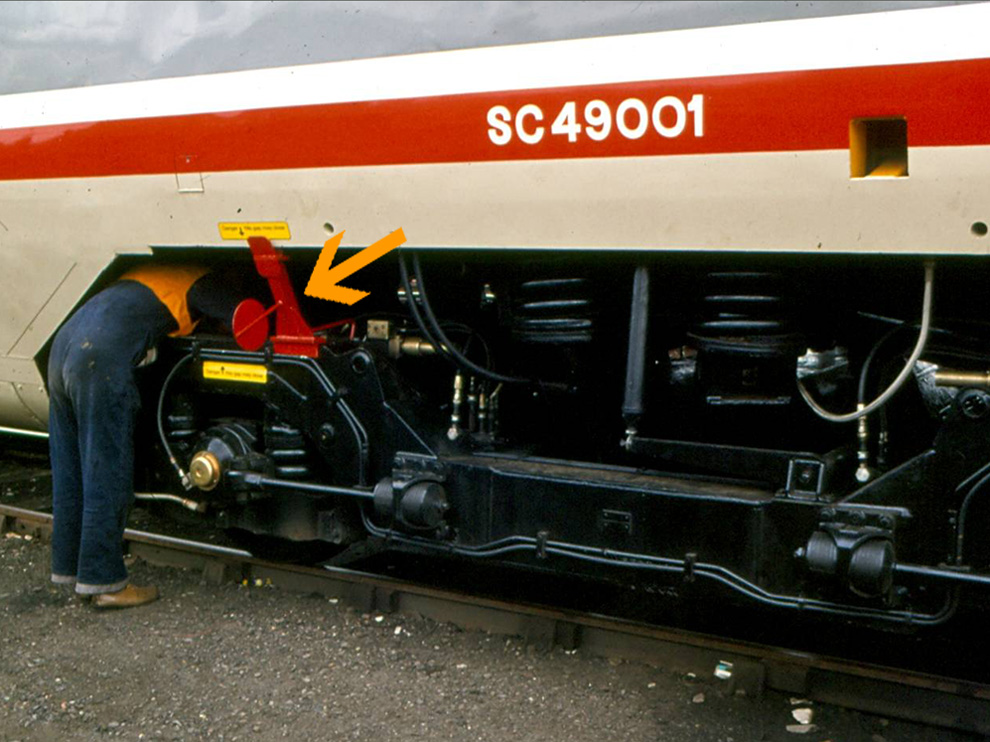

Power car with Safety Chock in place
Power car with Safety Chock in place.

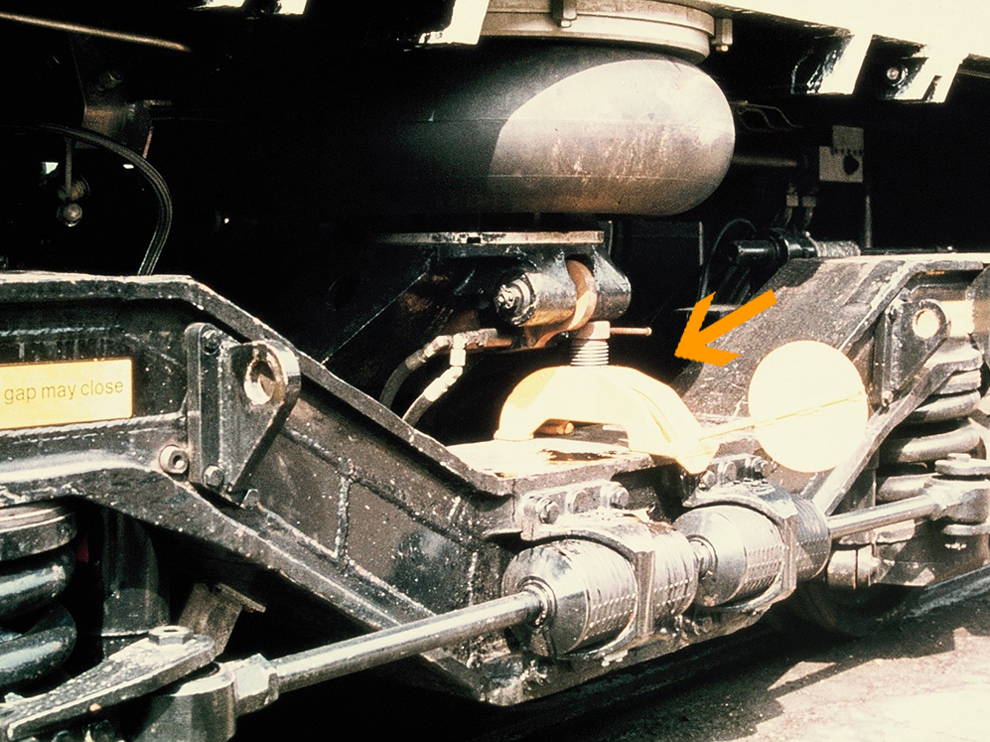

Trailer car with Safety Chock in place
End trailer car with Safety Chock in place.
